Up for consideration is a replacement transformer
and tube set for the vintage Neumann Gefell CMV-563 tube
mic. This set can be used for a DIY Oliver Archut circuit
mod, which includes replacing the old, low-grade caps and resistors,
and installing a new Oliver Archut / AMI
TAB-Funkenwerk UM-75 transformer, improving upon the
stock Gefell circuit based on Oliver's schematic,
and using a selected low-noise NOS Telefunken EC92
tube. Additionally, a W. Germany Mullard-Branded EC92 tube is
included with U47-style midrange emphasis. Here is your chance
to get this great CMV563 upgrade, simply by replacing these main
components!!!
REVIEW OF OLIVER'S MOD:
"The top end retained the soft,
smooth nature, but improved the sense of space. Upper mids remained
even and clear, but the mids/lower mids (800-200hz) got fuller
but also really cleared up a lot !...this was the biggest change
i heard. The low end stayed rich and warm, but tightened up a
bit. Overall it made things fuller and more natural. I was very
concerned about messing with the sound i already like with the
563's, this was more improvement than change. I am going to mod
both my CMV563s"
-- Stuart
Sullivan
of Wire Recording,
Austin, TX
describing the mod A/B test.
HI -RES PHOTOS:
Rebuilt
Mic | old
mic

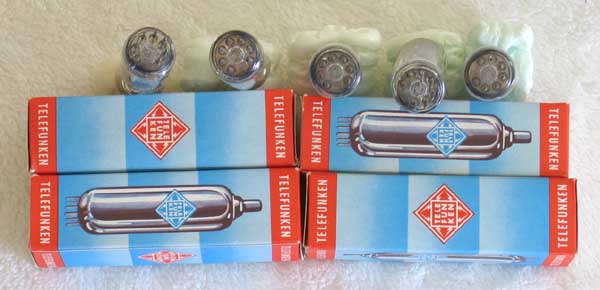

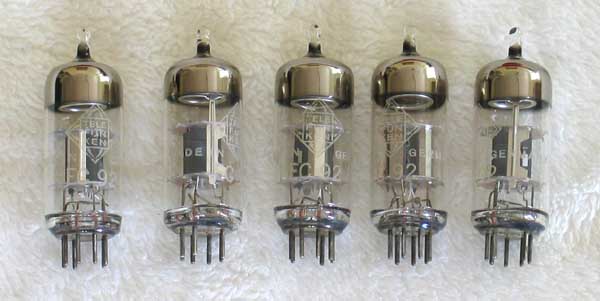

NOS
Tele Tubes | stock
tube

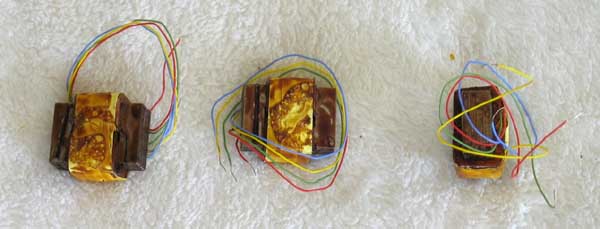

New
AMI Xformer | stock
transformer.
For more info: 1
| 2
| 3
| 4
SOUND FILES:
Click below for MP3 sound files of the stock mic and the
modded mic. I think the difference is so big that you can easily
hear it from the MP3 files. The signal chain is through a Presonus
ADL 600 mic pre, into a Rosetta 200 A/D converters into Logic.
ACOUSTIC GUITAR M7:
Old Mic: 1
| 2
-- Modded Mic 1
| 2
ACOUSTIC GUITAR M8:
Old Mic: 1
| 2
-- Modded Mic 1
| 2
ACOUSTIC GUITAR M55k:
Old Mic: 1
| 2
-- Modded Mic 1
| 2
WOODEN FLUTE M7:
Old Mic: M7
-- Modded Mic M7
WOODEN FLUTE M55k:
Old Mic: M55k
-- Modded Mic M55k
RAIN DRUM M7:
Old Mic: M7
-- Modded Mic M7
RAIN DRUM M8:
Old Mic: M8
-- Modded Mic M8
RAIN DRUM M55k:
Old Mic: M55k
-- Modded Mic M55k
VOICE OVER M7:
Old Mic: M7
-- Modded Mic M7
VOICE OVER M55k:
Old Mic: M55k
-- Modded Mic M55k
|
AUCTION INCLUDES:
* New AMI Transformer
* NOS Telefunken EC92 Tube
* NOS Mullard EC92 Tube
FEATURES:
This set can be used to upgrade your CMV563 according
to the Oliver Archut circuit mod and features his AMI /
TAB-Funkenwerk CMV563 transformer -- which Gefell uses
in their anniversary edition UM-75 microphone. The transformer
alone makes a huge improvement in the sound. Also included is
a NOS Telefunken EC92, tested for low-noise and tonality appropriate
for microphone use. The Telefunken tube is very hi-fi sounding
and even across the entire frequency spectrum. Additionally,
you will get a Mullard-branded, Made in W. Germany NOS EC92 tube
that has more of a midrange emphasis, giving you more of a U47
sound simply by switching the tube.
SHIPPING & TERMS
USA shipping is $10.00 via FedEx Ground, with insurance included.
We do accept PayPal. Thanks for looking. This auction is for
(1) new AMI-TAB Funkenwerk transformer, (1) Telefunken EC92 tube,
and (1) Mullard-branded EC92 tube for the Neumann Gefell CMV563
tube mic. No additional accessories are included.
